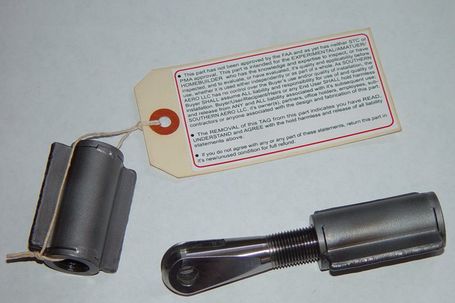

Stainless Steel Wing Diagonal, Drag/Anti-Drag & Tail Brace Wires Piper Style Strut Barrels

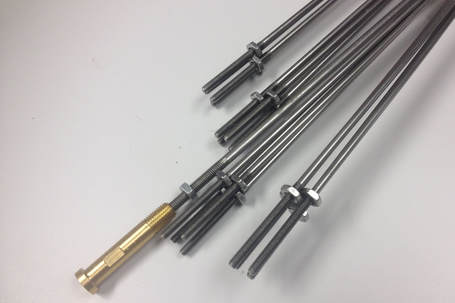

"Rolled" Threads. 6-40, 6-32, 8-32, 10-32 1/4-20 & 1/4-28 Available for the 5/8 - 18 Thread forks
"Rolled" Threads. 6-40, 6-32, 8-32, 10-32 1/4-20 & 1/4-28 Available for the 5/8 - 18 Thread forks
|
|

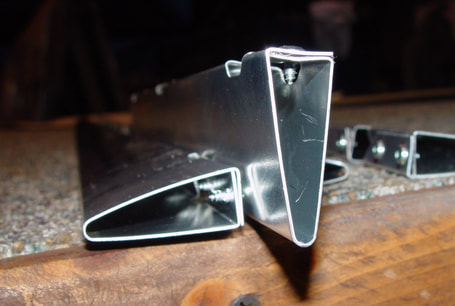

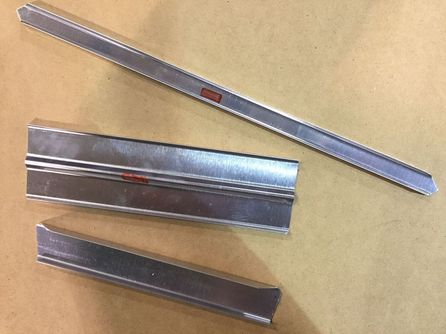

"Piper Style" Trailing Edges for Flaps or Ailerons to fit most any Fabric Wing Aircraft. Shape can be adjusted for your airfoil. May be "NOTCHED" for your rib spacing and can fabricate up to 120" long, .......... Eliminate splicing or 2 piece trailing edges. Also "Squared Off" trailing edges available for any airfoil. Stronger with Quicker response, less drag.
|
|
Front & Rear "Foot" for Piper style compression strut

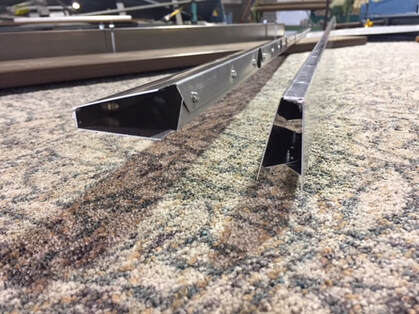

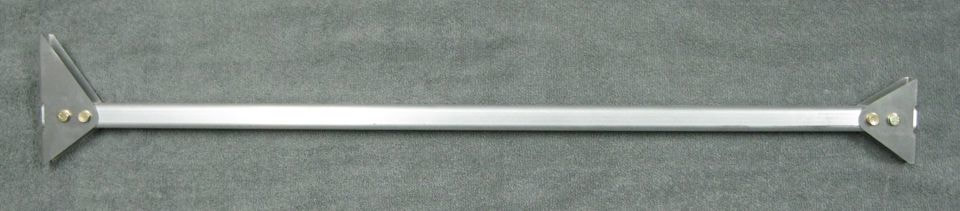

Piper Style Compression Strut Assembly

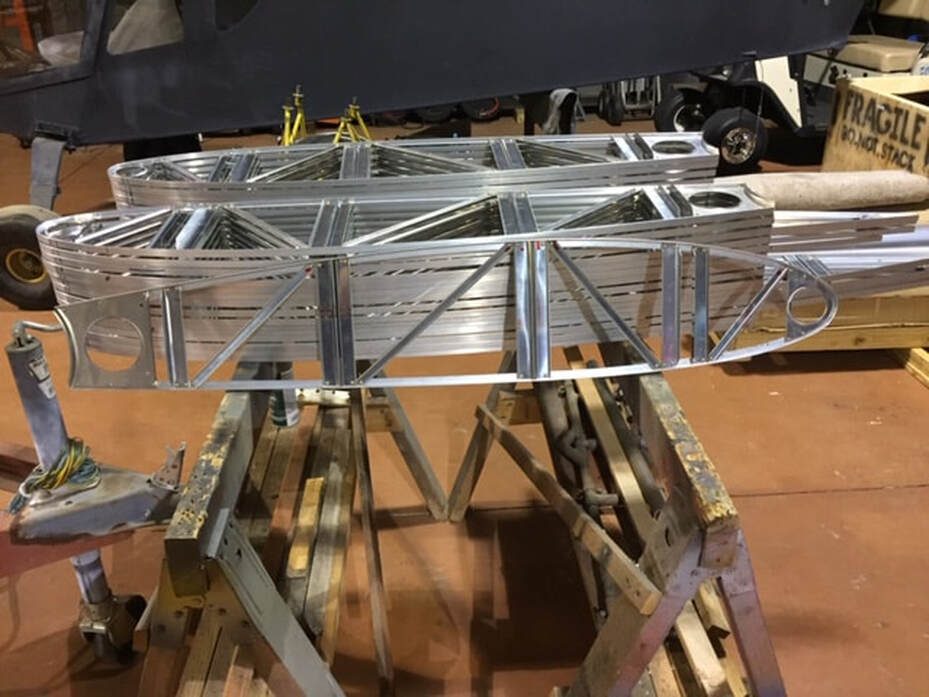

Custom ribs made with the Offset T extrusions
|
|

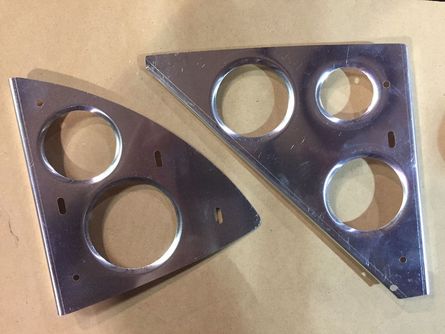

Flap & Aileron Bay Bulkheads for "T" Section on the Pacer Plus Truss Braced Ribs Flap and Aileron ribs
|
|

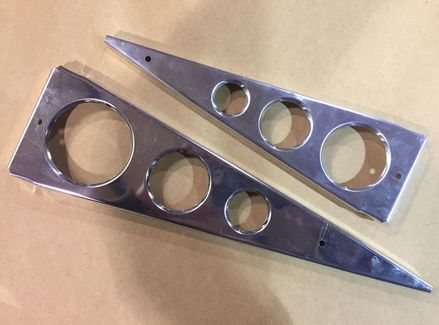

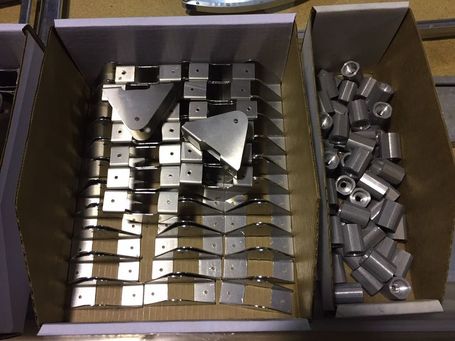

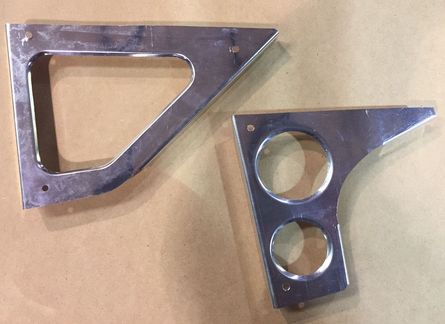

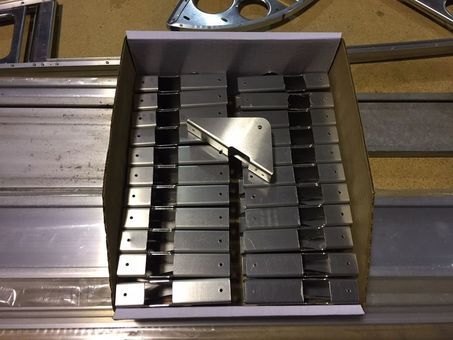

Some of the sheet metal parts for the Piper style Truss Braced Rib for Slatted Wing
|
|

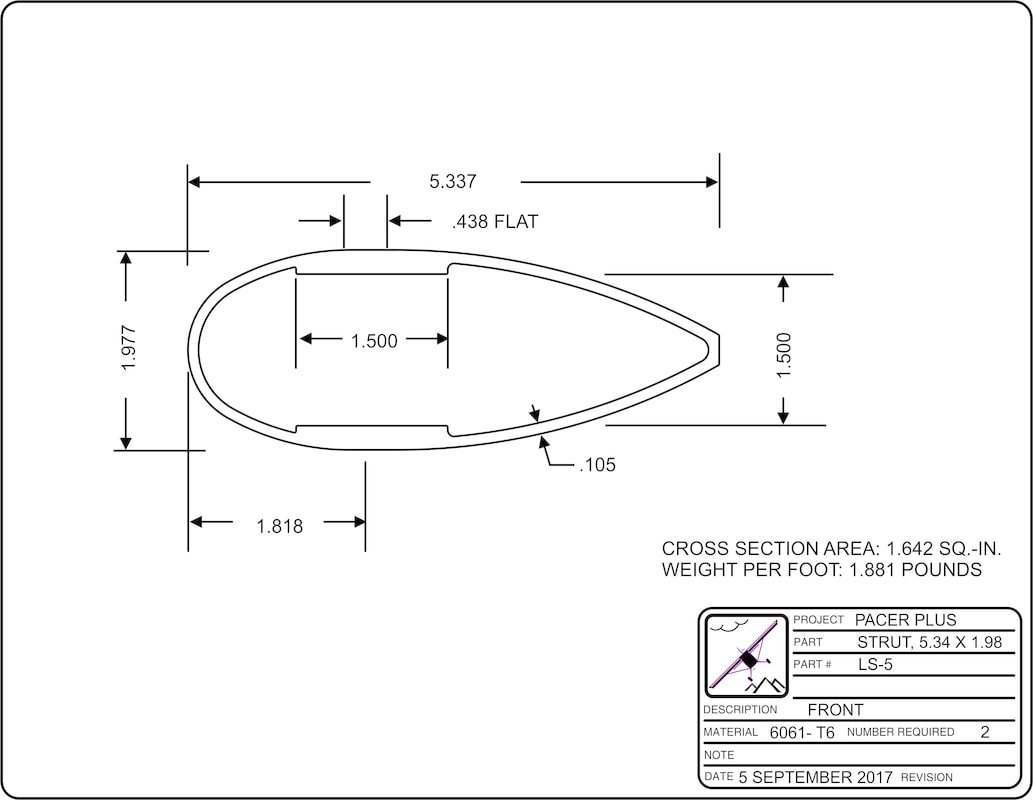

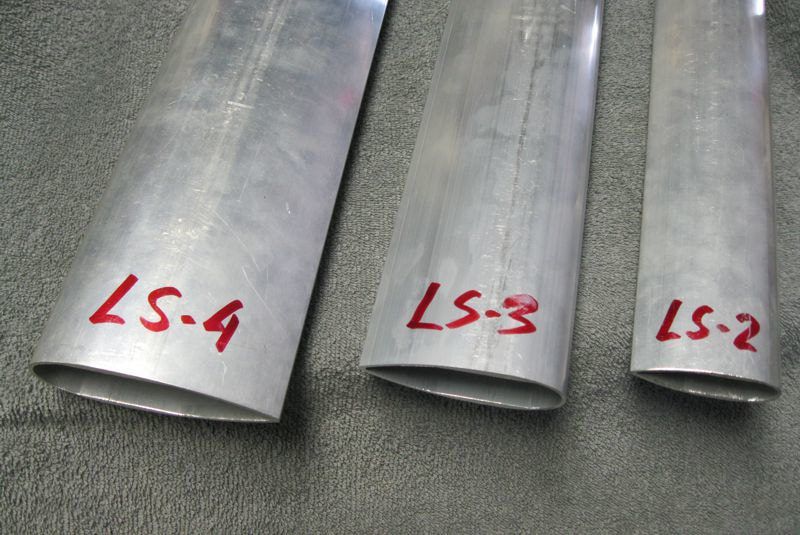

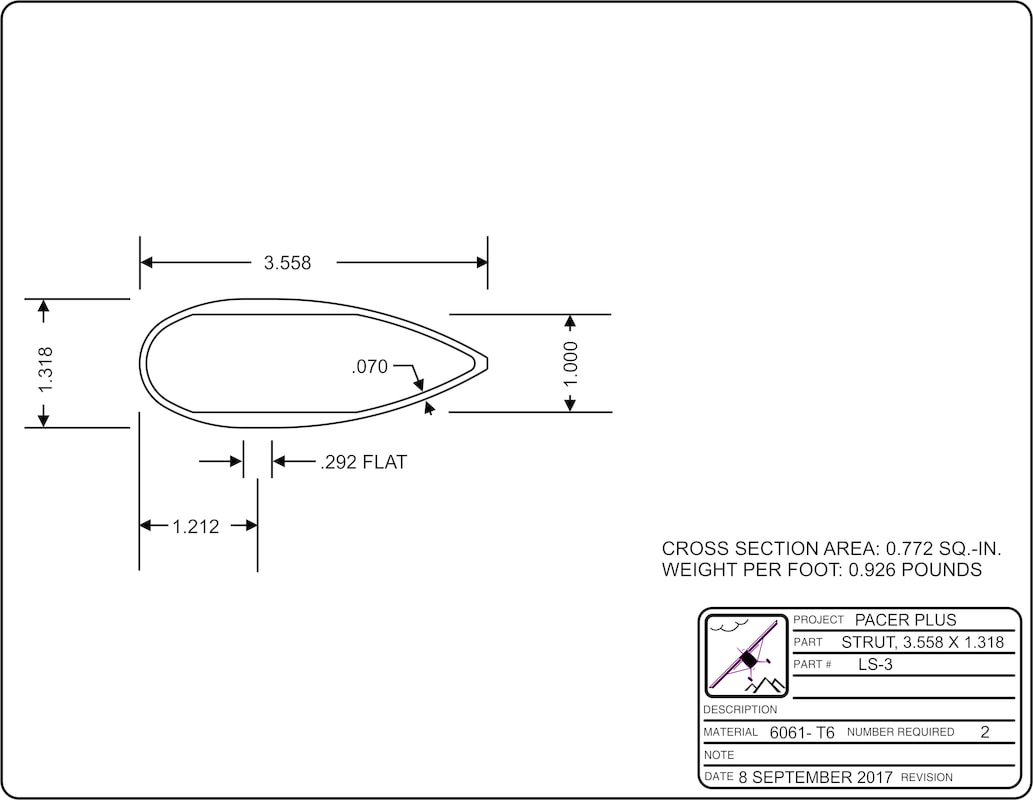

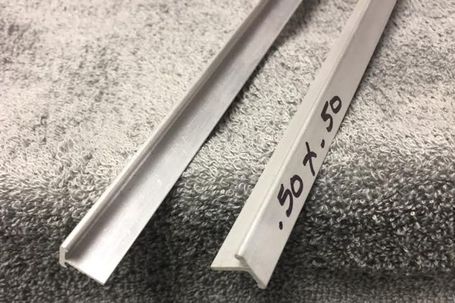

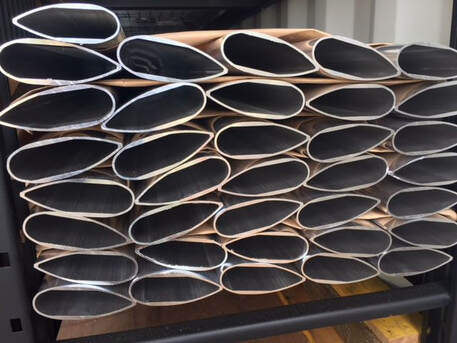

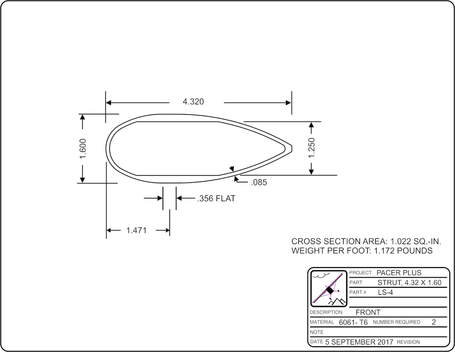

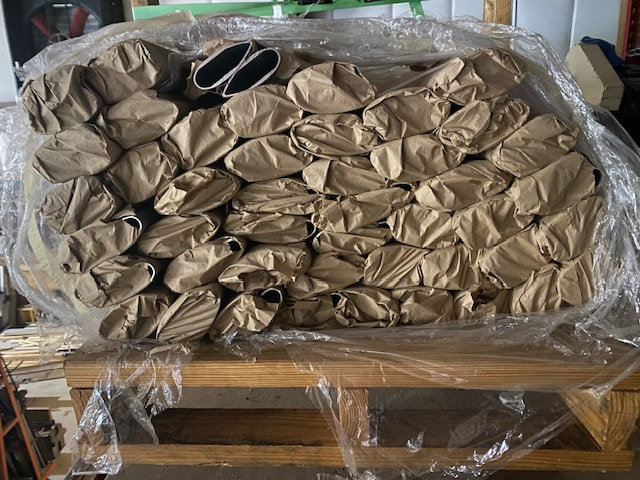

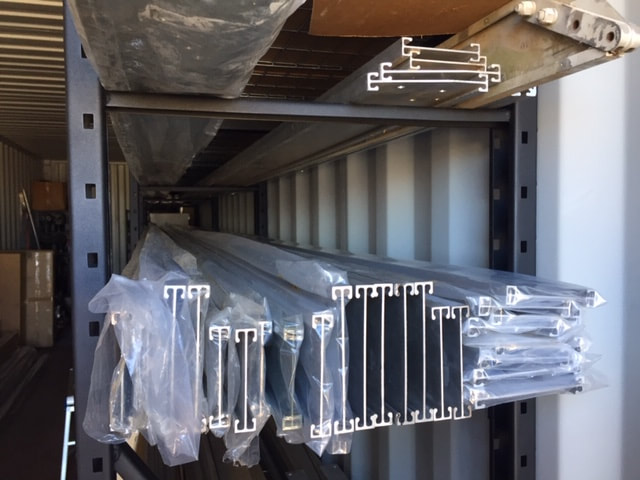

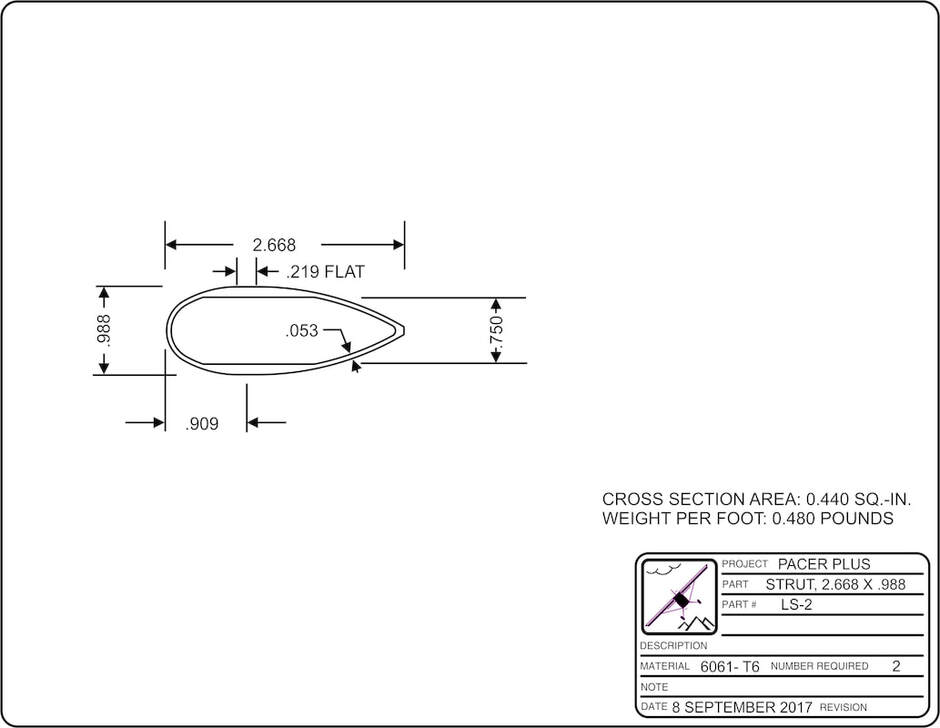

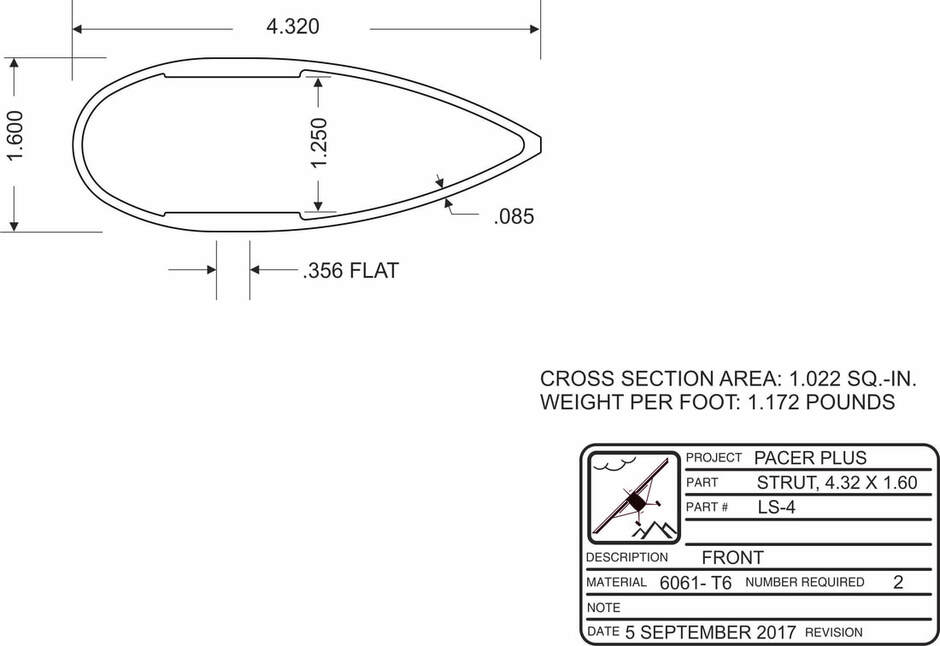

Our Aluminum Streamlined Strut Material, LS-5 not shown Extruded Offset "T" Section for Rib Construction
|
|

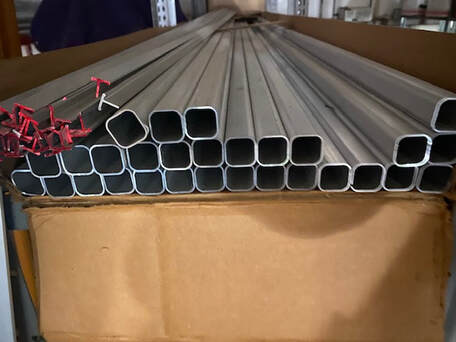

Piper Style 7/8" x .035 Square Compression Strut Material Piper Style Spars in Multiple Sizes
|
|

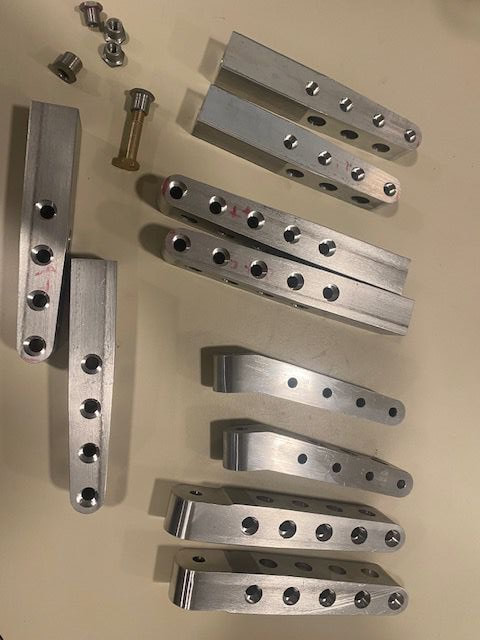

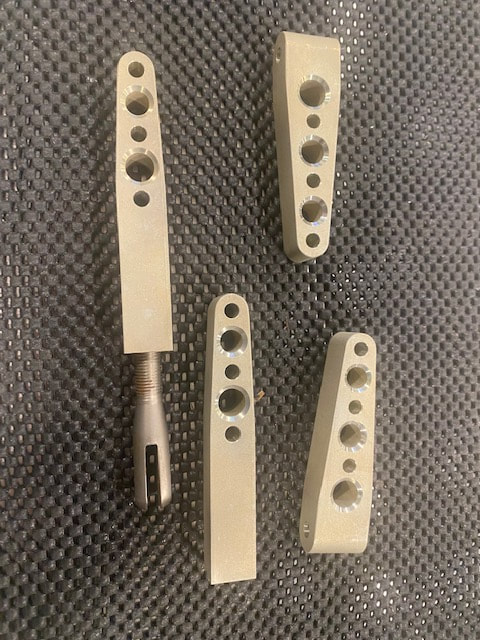

Custom all Aluminum strut assemblies available
|
|
|
|
|
|
We work with D & E Aircraft out of Florida to provide multiple styles of strut extrusions for
wing struts or float installations.
wing struts or float installations.
|
|
|

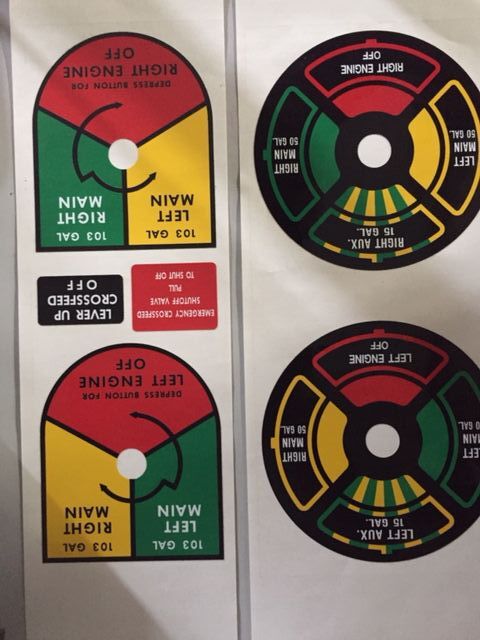

Fuel Selectors Placard Overlays for Most Twin Cessnas
